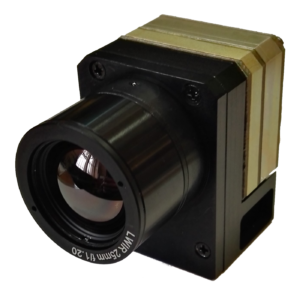

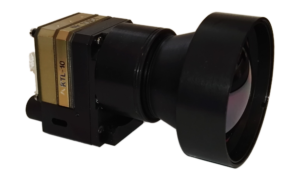

The KTL module is a versatile thermal imaging camera designed for observation in visibility conditions: day, night, fog or smoke. The device was built based on an uncooled bolometric detector. The module can be equipped with athermalized lenses with different field of view angles and an additional shutter. The image from the device is transmitted in analogue or digital form. For example, the KTL module can be used in monitoring rooms and areas, during search and rescue operations, supervising technological devices and installations, and in unmanned aerial systems. Optionally, the module can be equipped with the function of indicating objects whose temperature is within the defined range by colouring the appropriate fragment of the image. The thermal imaging module is the optimal solution wherever high image quality with a small size and weight is required.
| Lenses | |
| field of view (H) | from the range of 3° to 90° |
| Image parameters | |
| polarity | white hot, black hot |
| colour schemes | B&W, Fire, Green, Colour, Red Hot |
| digital zoom | 2×, 4× |
| calibration | NUC, BPR |
| Detector | |
| type | uncooled microbolometric detector |
| resolution | 640×480 px |
| pixel size | 17 µm |
| spectral response | 8 to 12 µm |
| sensitivity | NEDT < 25 mK |
| Control interface | |
| type | RS-485 or UART 3V |
| Video output | |
| analogue | CVBS PAL |
| digital | BT.656, SD-SDI lub MIPI CSI-2 |
| Supply | |
| type | 5 to 12 VDC |
| power consumption | < 1.5 W |
| Mechanical parameters | |
| dimensions | 36× 36 × 44 mm |
| weight | 45 g |
| Environment parameters | |
| operating temperature | −30°C to +50°C |
| storage temperature | −35°C to +55°C |
| Additions | |
| shutter | optional |
